Gas Station Fuel Level Density Volume Measuring 0.3mm Precision Float Level Gauge
Product Description
Automatic Tank Gauging
Guihe fuel tank probes are installed into bulk fuel tanks for automatic reading of volume, water, temperature and mm. Readings are taken periodically and at every level increment. Deliveries are also automatically detected.
Tank Gauging Features
- The product level and temperature in a tank are measured continuously and automatically analyzed and recorded by a computer-this saves labour and time
- The ATGS replaces the use of the dip stick to measure product level and perform inventory control. This mode records the activities of an in-service tank, including deliveries
- In the "Leak test mode," the tank is taken out of service and the product level and temperature are measured for at least one hour to detect possible leaks. The ATG system works alone or with a Dispensing Controller or Point of Sale (POS) system
- Tank inventory information is posted directly to a website
- Sites can be viewed or managed remotely via the internet or on the site
- Reports and alarms etc. can be customised to the clients requirements

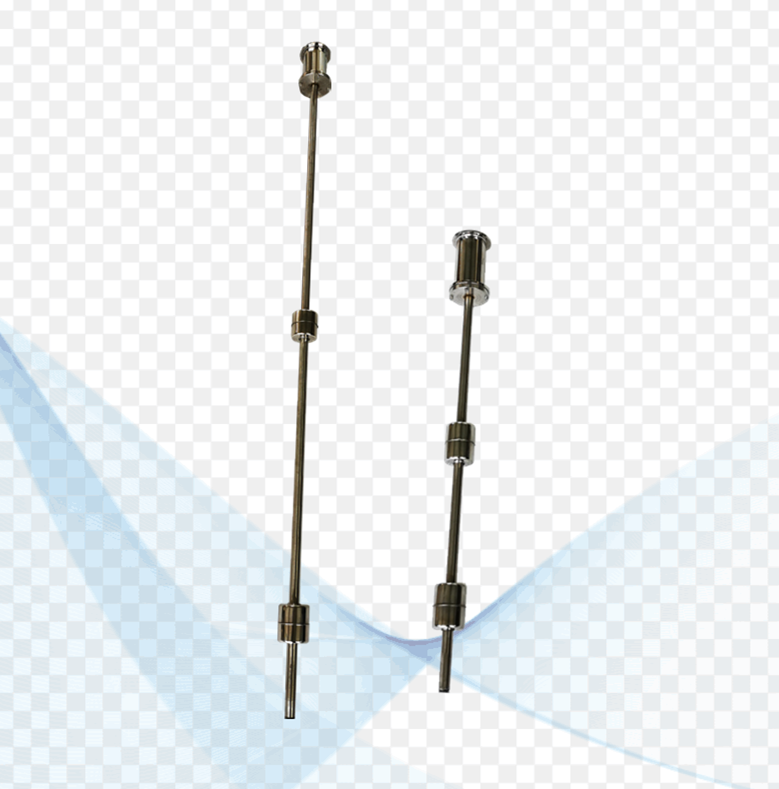

Magnetostrictive level meter (SYW)
| Item | SYW |
| Purpose | To measure product level, water level and temperature |
| Titles of medium | Gasoline, diesel, kerosene, ethanol , water etc. |
| State of medium | Liquid |
| Explosion-proof grade | ExiaIIBT4 (Intrinsically safe) |
| Pressure range | -0.02Mpa~0.6Mpa |
| Certificate | PCEC Conformity Certificate of Explosion-proof |
| Temperature | -40℃～70℃ |
| Product Level Accuracy | ±0.3mm |
| Water Level Accuracy | ±0.3mm |
| Temperature Accuracy | ±0.2℃ |
| Height Resolution | 0.023mm |
| Repeatability | ±0.1mm |
| Temperature Effect | Error<0.2mm |
| Vibration Effect | Error<0.5mm |
| Lowest Product Inactive Zone | 2.5'' floater-180mm |
| Lowest Water Inactive Zone | 2.5'' floater-25mm |
| Measured Variable | Product level, interface level and temperature of 5 sensors and average temperature |
| Measure Range | 600~4000mm |
| Method of Communication | RS-485 |
| Probe Material | 1Cr18Ni9Ti |
| Power Supply | +24～26VDC |
| Protection Class of Probe Canister | IP67 |
| Max Communication Distance | 1200m |

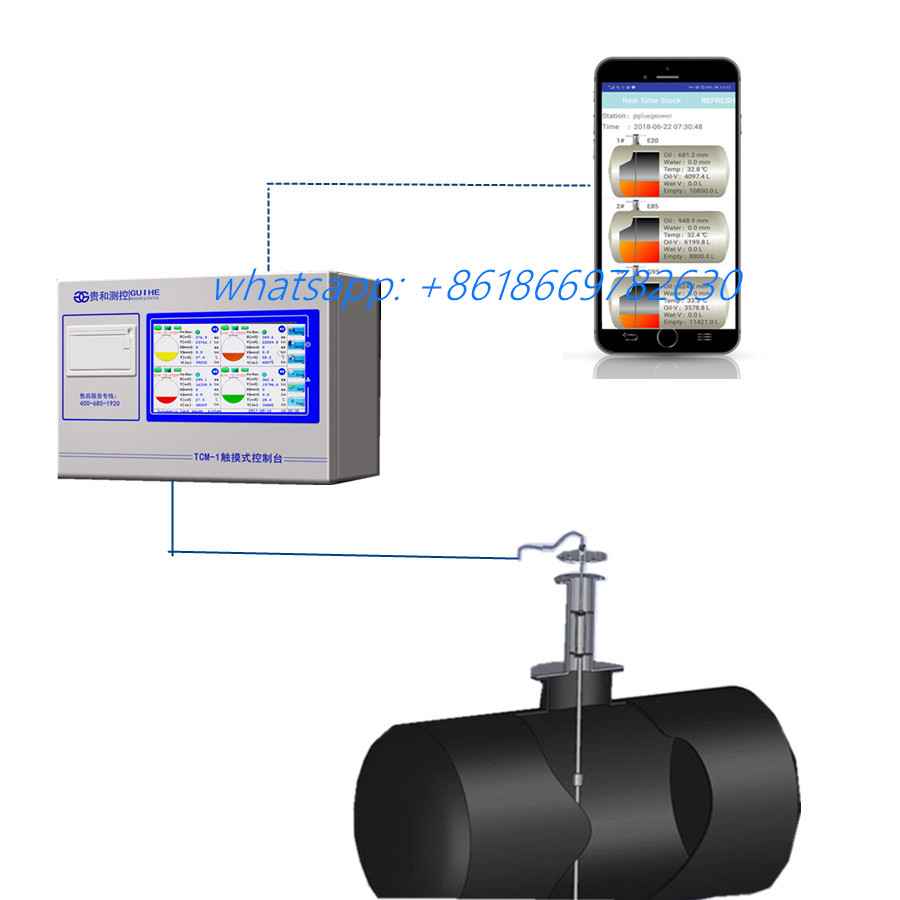

Internet remote check function:
At home, on the road or even you are aboard , only need a smart phone, you can control all your stations by yourself at any time, anywhere, calmly deal with petrol station management details. Now we highly launched the petrol station management mobile application system , it can achieve real-time monitoring of petrol station tank storage informationall by mobile phone.
Function:
∗ Accurately monitoring the delivery,sales and inventory of oil in the tank
∗ User defined Alarm and system auto alarm
∗ Can set the parameter directly through TCM-1 console
∗It can be connect to the PC , can monitoring the delivery,sales and inventory of oil in the tank on the PC
by PC Remote, print on PC
∗ All the data and report can be exported, and can be save in PC files

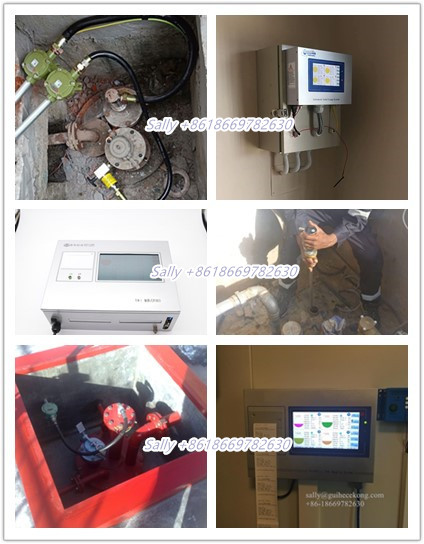

ATG Installation
