SYWA High Precision RS485 Output gasoline Fuel Tank Level Probe / Sensor

Product Categories
Qingdao Guihe Measurement & Control Technology Co., Ltd
Contact Now

SYWA High Precision RS485 Output gasoline Fuel Tank Level Probe / Sensor

  • 1
  • 2
  • 3

Brand Name : Guihe

Model Number : SYW-a

Certification : PCEC Explossion proof certification

Place of Origin : China

MOQ : 1 PCS

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000PCS per month

Delivery Time : 5-7 working days

Packaging Details : diesel level probe sensor wooden case packing

Product name : magnetostrictive level probe sensor

Level range : 0-4m

Power supplyl : 24V

Temperature range : -40 to 70℃

Medium : Gasoline, diesel, kerosene, ethanol , water etc.

Communication : RS485

More function : density sensor

keywords : underground tank gauge

Contact Now

SYWA High Precision RS485 Output Gasoline Fuel Tank Level Probe / Sensor





Product Description





SYWA High Precision RS485 Output gasoline Fuel Tank Level Probe / Sensor

SYW-A Probe +TCM-1 Touch Control Console + Central Control System + Internet

●Industrial design, long service life, fast in running.
●Excellent compatibility with different brand Central Control System.
●Integrated design for the safety barrier and control console in order to easy installation and lower the cost.
●Information are stored in memory for future inquiry.
●It enjoys a tank tilt compensation function
●It can connect with explosion-proof ringer outdoors avoiding the product spilled
●With an embedded printer it can print inventory reports, delivery reports, leak reports and shift reports
●It can monitor up to 12 tanks and display dynamically the product level and water level with colored graphics in proportion.
●After connected with Central Control System though internet, it can provide information for manager to manage the inventory, delivery and the sale of the product.



Product Parameters
No.
Item
Specification
1
Usage
To measure product level, water level and temperature
2
Measuring Medium
Gasoline, diesel, kerosene, ethanol , water etc.
3
Explosion-proof
ExiaIIBT4 (Intrinsically safe)
4
Temperature
-40℃~70℃
5
Fuel Level Accuracy
±0.3mm
6
Temperature Accuracy
±0.2℃
7
Height Resolution
0.023mm
8
Lowest Product Inactive Zone
2.5'' floater-180mm
9
Lowest Water Inactive
2.5'' floater-25mm
10
Measured Variable
Product level, interface level and temperature of 5 sensors and average temperature
11
Measuring Range
600~4000mm
12
Communication
RS-485
13
Power Supply
+24~26VDC
14
Protection Class of Probe Canister
IP67
15
Probe Material
1Cr18Ni9Ti
16
Max Communication Distance
1200m


SYWA High Precision RS485 Output gasoline Fuel Tank Level Probe / SensorSYWA High Precision RS485 Output gasoline Fuel Tank Level Probe / Sensor

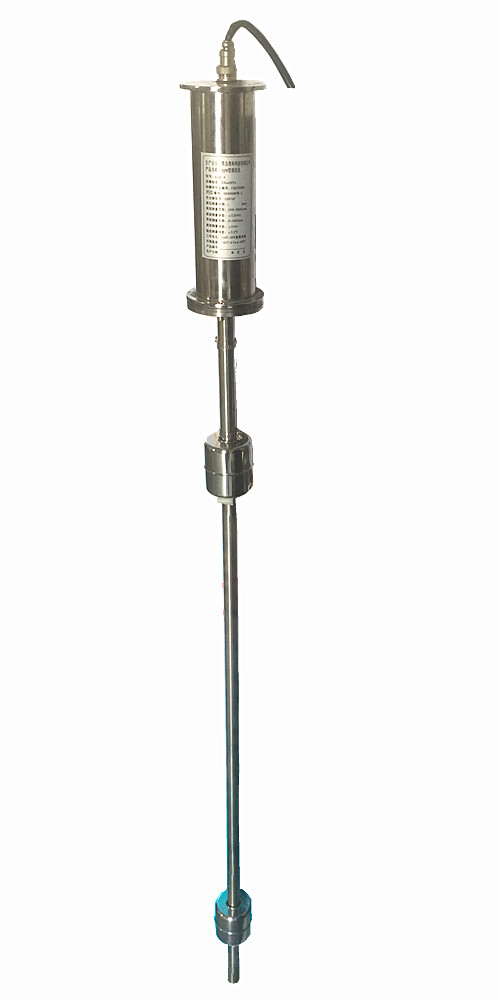

Features of magnetostrictive probe

  • Real time data transmission.
  • Five-point temperature sensing.
  • Digital signal transmit with anti-interruption ability.
  • Maximum communication distance: 1200m.
  • High precision as 0.5mm and resolution as 0.01mm.
  • Leak Detect function: Standard--- 0.38L/H or 0.76L/H.
  • More reliable, environment friendly, could be used in torrid climate and freezing climate.
  • Non-corrosion 316 stainless steel ensure longer lifetime in most petroleum products.
  • Trouble-free, easy to install and operate.
  • IP67 protection grade.

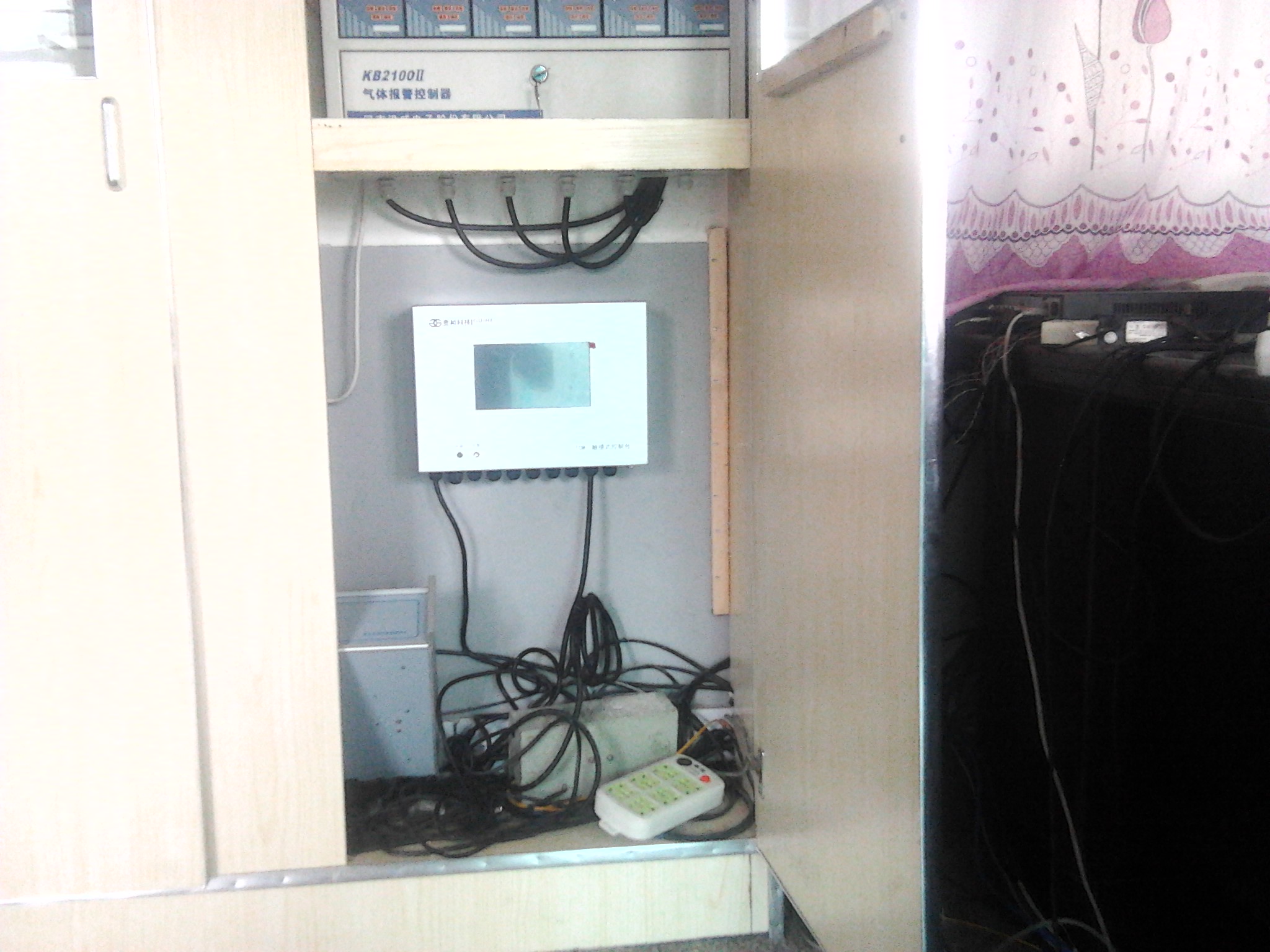

Installation:

SYWA High Precision RS485 Output gasoline Fuel Tank Level Probe / Sensor



SYWA High Precision RS485 Output gasoline Fuel Tank Level Probe / Sensor

SYWA High Precision RS485 Output gasoline Fuel Tank Level Probe / Sensor

SYWA High Precision RS485 Output gasoline Fuel Tank Level Probe / Sensor

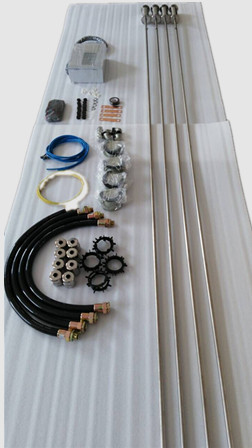

Package
SYWA High Precision RS485 Output gasoline Fuel Tank Level Probe / Sensor


Our service

1. Provide necessary conditions for the customers visiting factory.

2. Good quality with competitive price.

3. All products have been strictly Quality Checked before shipping.

4. Free repair within 12 months.

5. Great after-sale service and offer solution within 24 hours.

6.OEM is ok.



Company Information

Qingdao Guihe Measurement & Control Technology Co., Ltd was founded in 2002, is a professional manufacturer of petroleum equipment. We specialized in producing Magnetostrictive liquid level meter (tank gauging system), Underground fuel tank volume table calibration system, Double layer tank leakage detector, Double layer pipeline leakage detector, Tank car liquid level meter, Human body electrostatic discharge alarm. We also providing different customers with personalized solutions.
