Fuel Station 10 - 50m³ Underground Gasoline Diesel Tank Volume Calibration Equipment

Name: Fuel Station 10 50m Underground Gasoline Diesel Tank Volume Calibration Equipment
Brand: Guihe
Price: 20000 USD

Buy cheap Fuel Station 10 - 50m³ Underground Gasoline Diesel Tank Volume Calibration Equipment product

Brand Name : Guihe

Model Number : GH-300

Certification : PCEC Explossion proof certification

Place of Origin : China

MOQ : 1 sets

Price : USD20000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 15 working days

Packaging Details : wooden case packing

Power supply : AC380V AC220V,50HZ

Measuring range : 10-300m³

Temperature : -20 to 70℃

communication : RS485

keywords : Tank volume table calibration system

Usage : calibration tank capacity table

Contact Now

Guihe 3D Tank capatity calibration equipment , automatic level sensor gauge for ga station

Product Description

The system consists of the sliding vane pump, metering pump, calibration intellectual controller, laptop, printer, system software, pipeline for transfer oil, communication wire and other accessories.

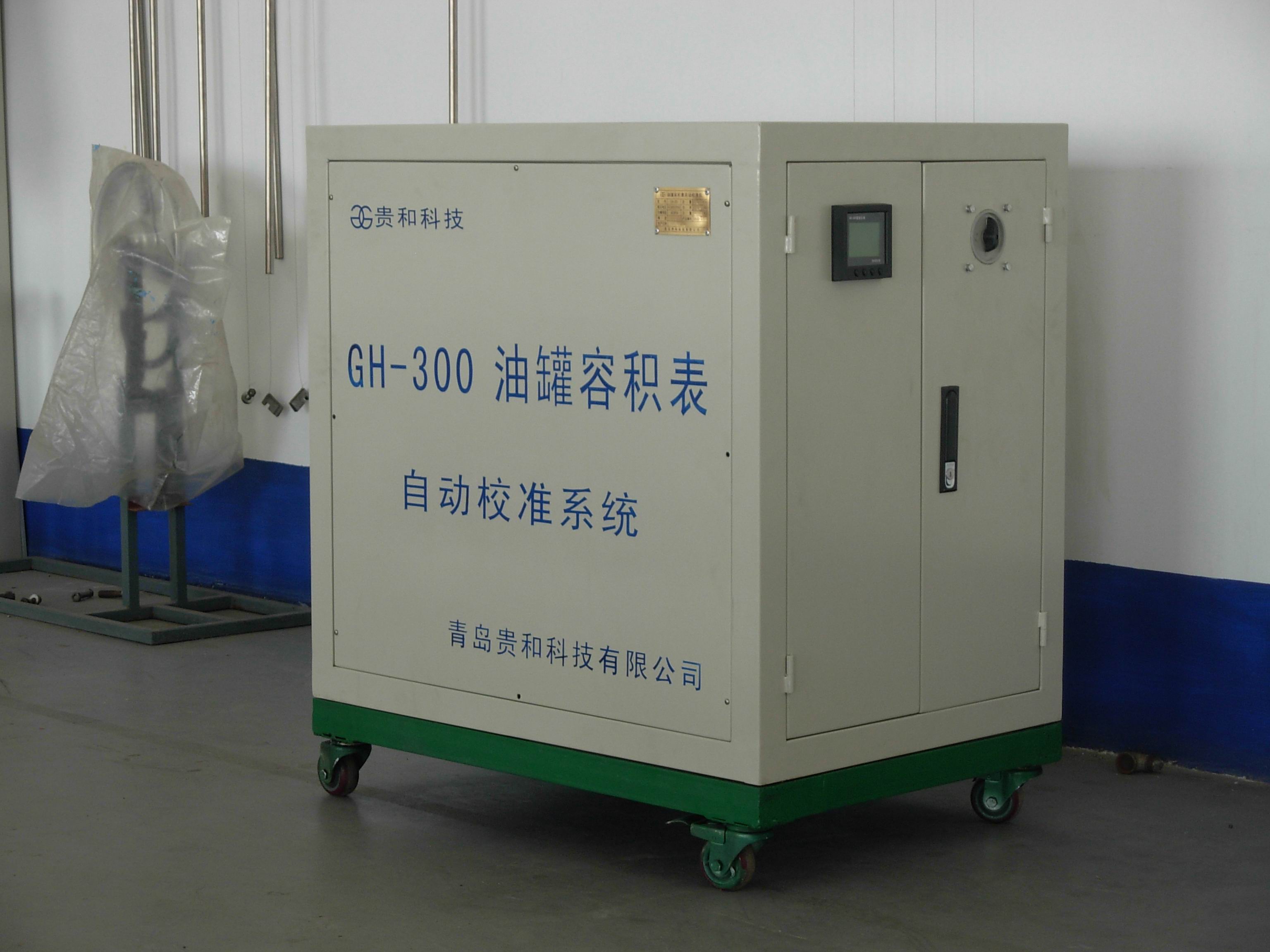

GH-300Tank Capability Calibration System.
1. Measure Principle:Special volume measurement technology and magnetostrictive measurement techniques
2. Medium Name:gasoline, diesel, kerosene, light oil and so on
3. Medium status:liquid
4. Anti-explosion classification:Exde[ia]iaIIBT4
5. Pressure range:-0.02Mpa~0.6 Mpa
6. Authentication Item:PCEC Anti-explosion quality certificate / Manufacturing measuring instruments license
7.Temperature range:-25℃~60℃
8. accuracy	Capacity accuracy	≤±3‰
	Liquid level accuracy	±0.2mm
	Temperature accuracy	±0.2℃
	High resolution	0.01mm
	Repeatability Accuracy	±0.1mm
	Temperature effect (-25℃-70℃)	Measuring error<0.2mm
	Mechanical shocking effect	Measuring error<0.5mm
	Bottom oil level dead zone	2.5″floater—120mm
	Meter flow oil level	Intellectual reveal
	Tank capacity table, oil level revise	yes
9, Measure method		Site measurement, data upload
10, tank capacity range		10~300m3
11, communication method: RS-485
13, power supply method:AC380V AC220V 50HZ
14, Degrees of protection provided by enclosures:IP67
15, Standard Power for the anti-explosion motor:2.2KW

Fuel Station 10 - 50m³ Underground Gasoline Diesel Tank Volume Calibration Equipment

Package:

Fuel Station 10 - 50m³ Underground Gasoline Diesel Tank Volume Calibration Equipment

More products

Fuel Station 10 - 50m³ Underground Gasoline Diesel Tank Volume Calibration Equipment

Our service

1. Provide necessary conditions for the customers visiting factory.

2. Good quality with competitive price.

3. All products have been strictly Quality Checked before shipping.

4. Free repair within 12 months.

5. Great after-sale service and offer solution within 24 hours.

6.OEM is ok.

Fuel Station 10 - 50m³ Underground Gasoline Diesel Tank Volume Calibration Equipment
